Product Overview

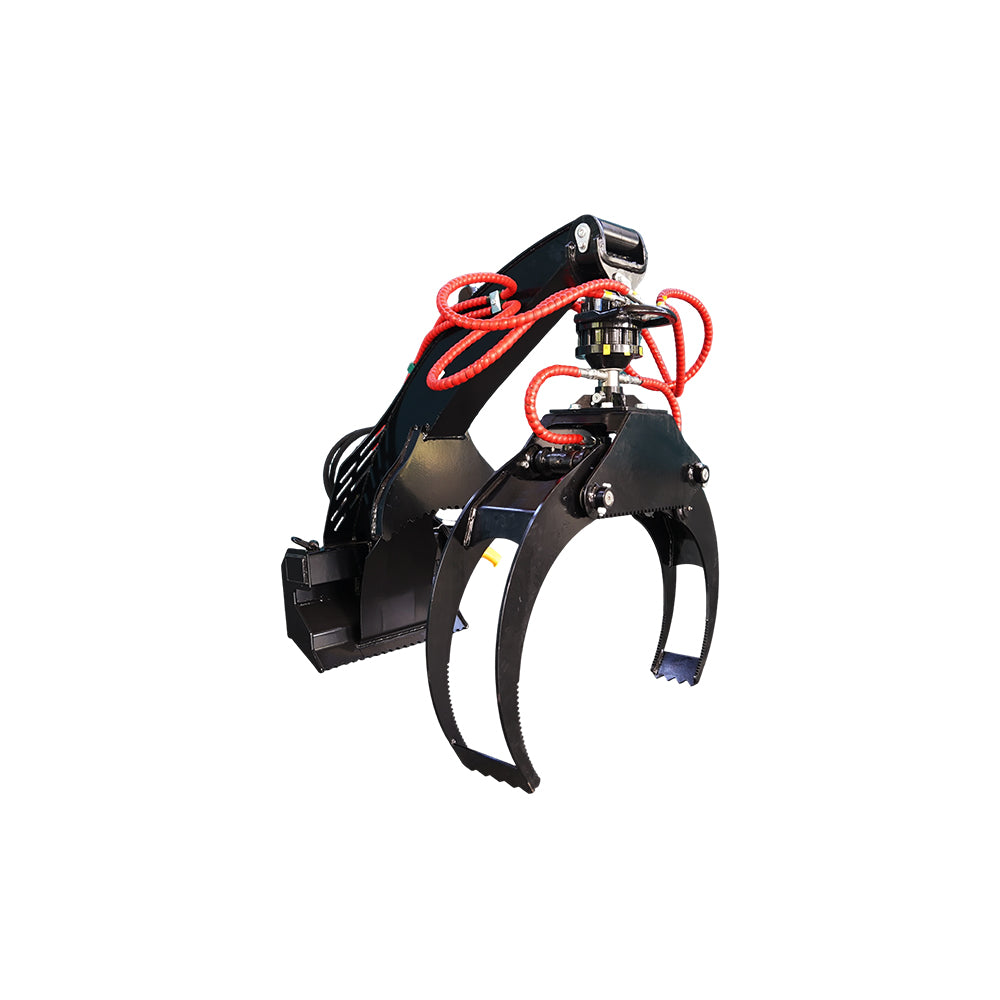

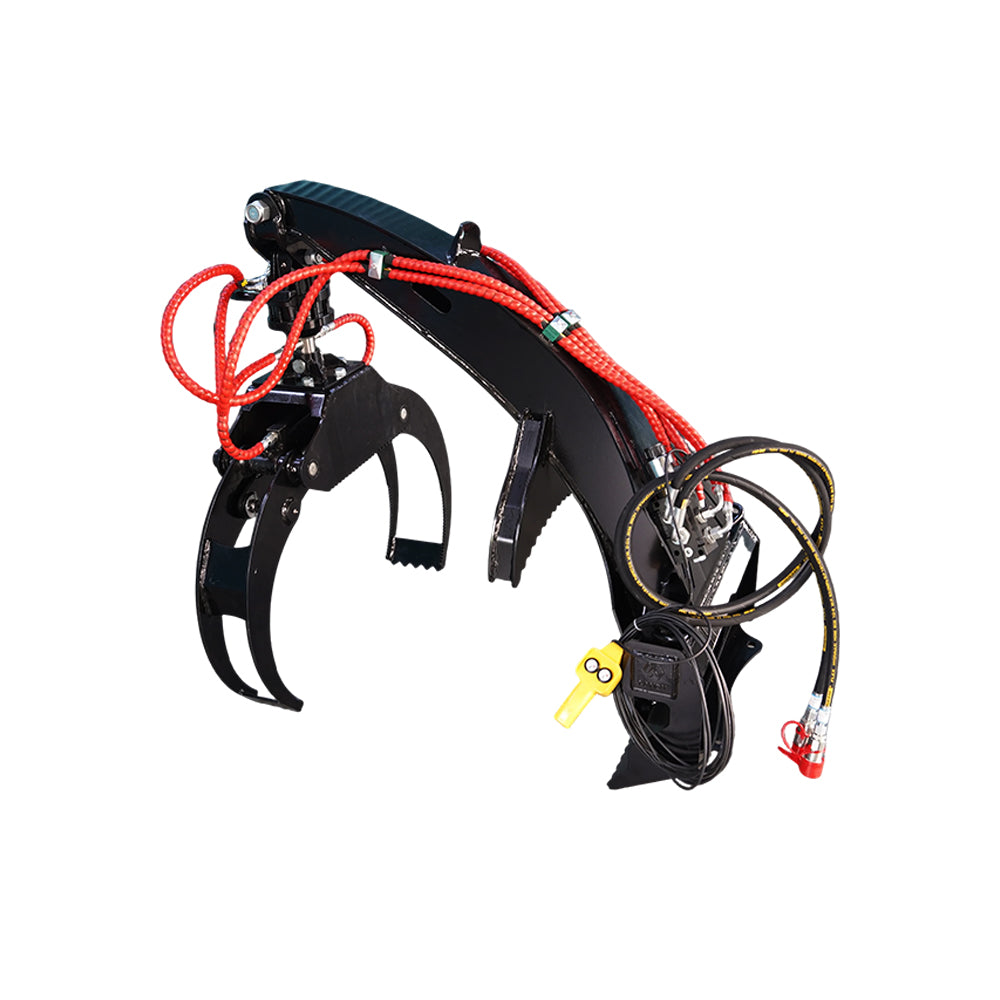

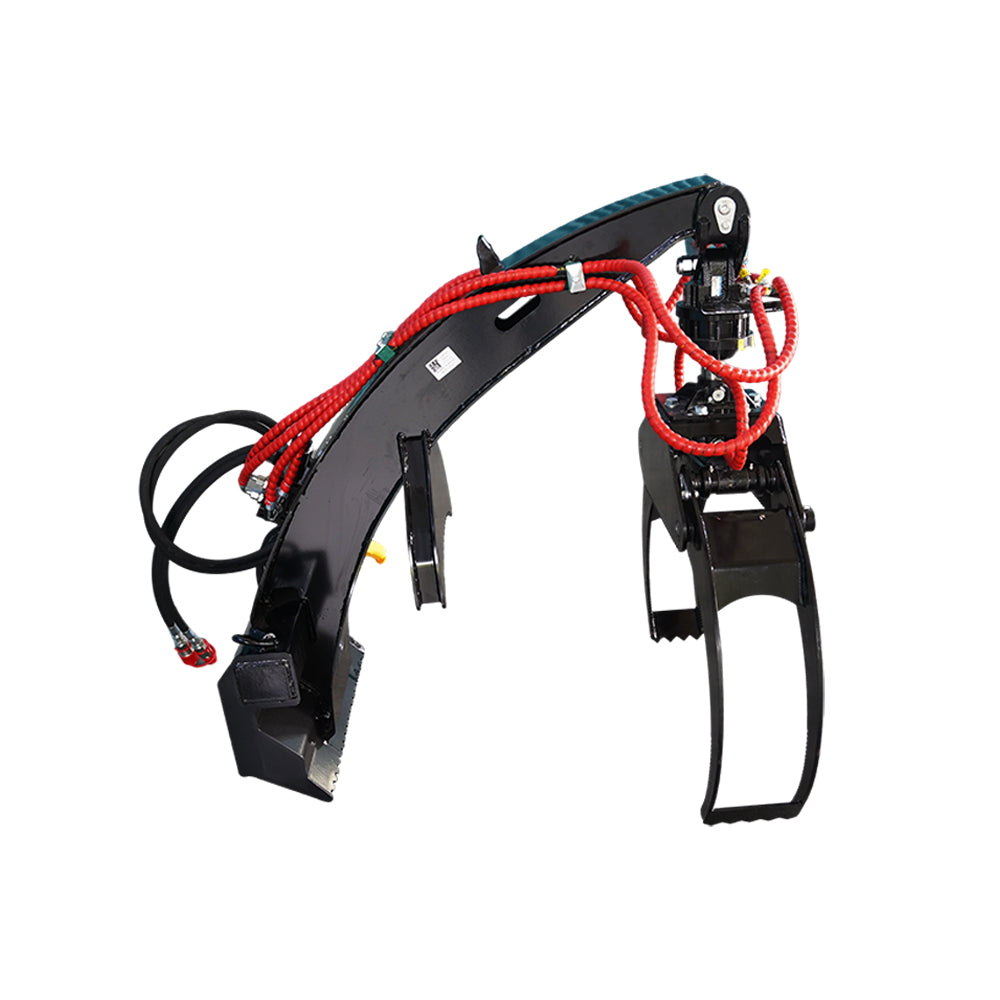

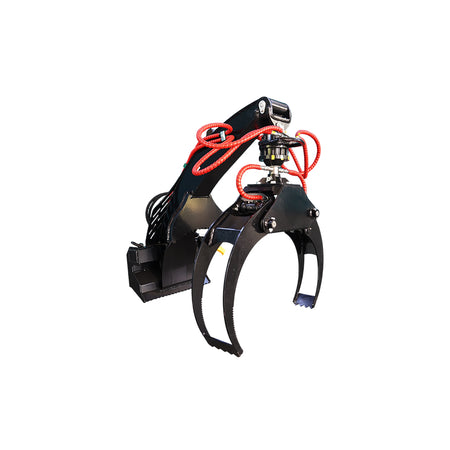

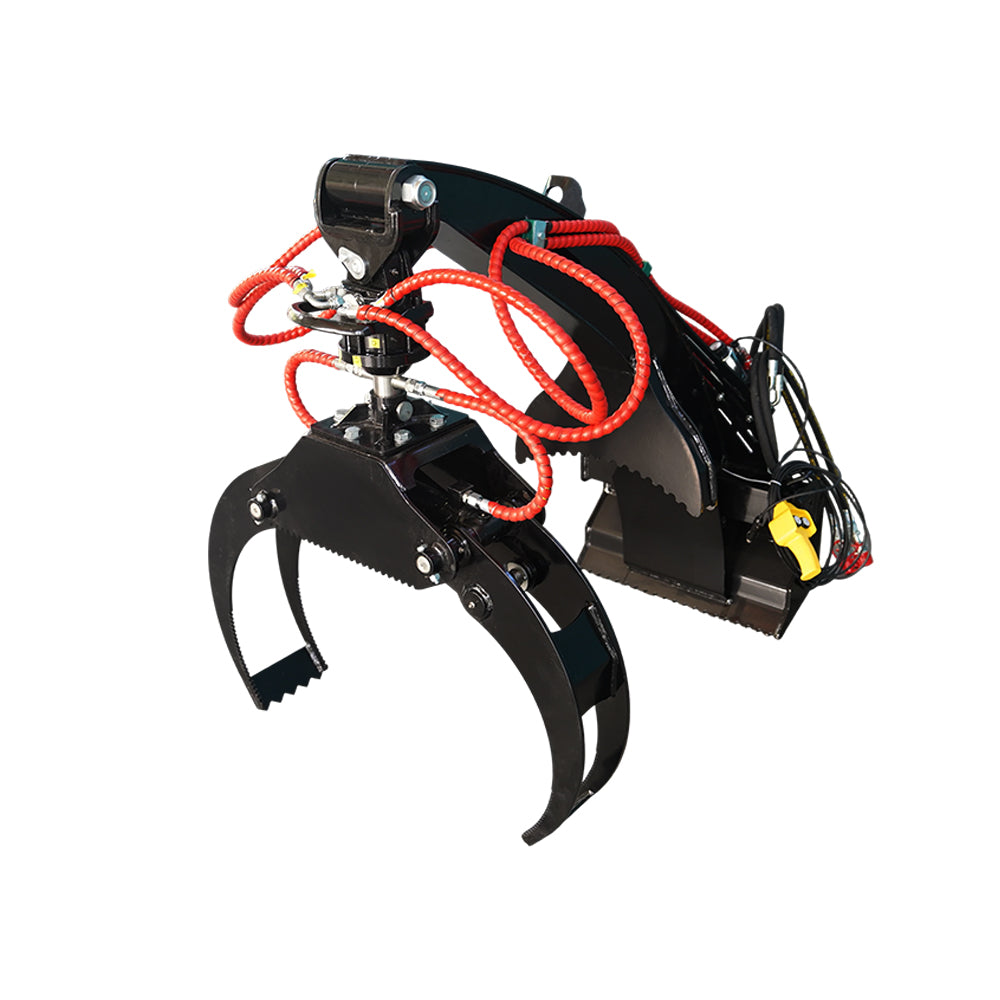

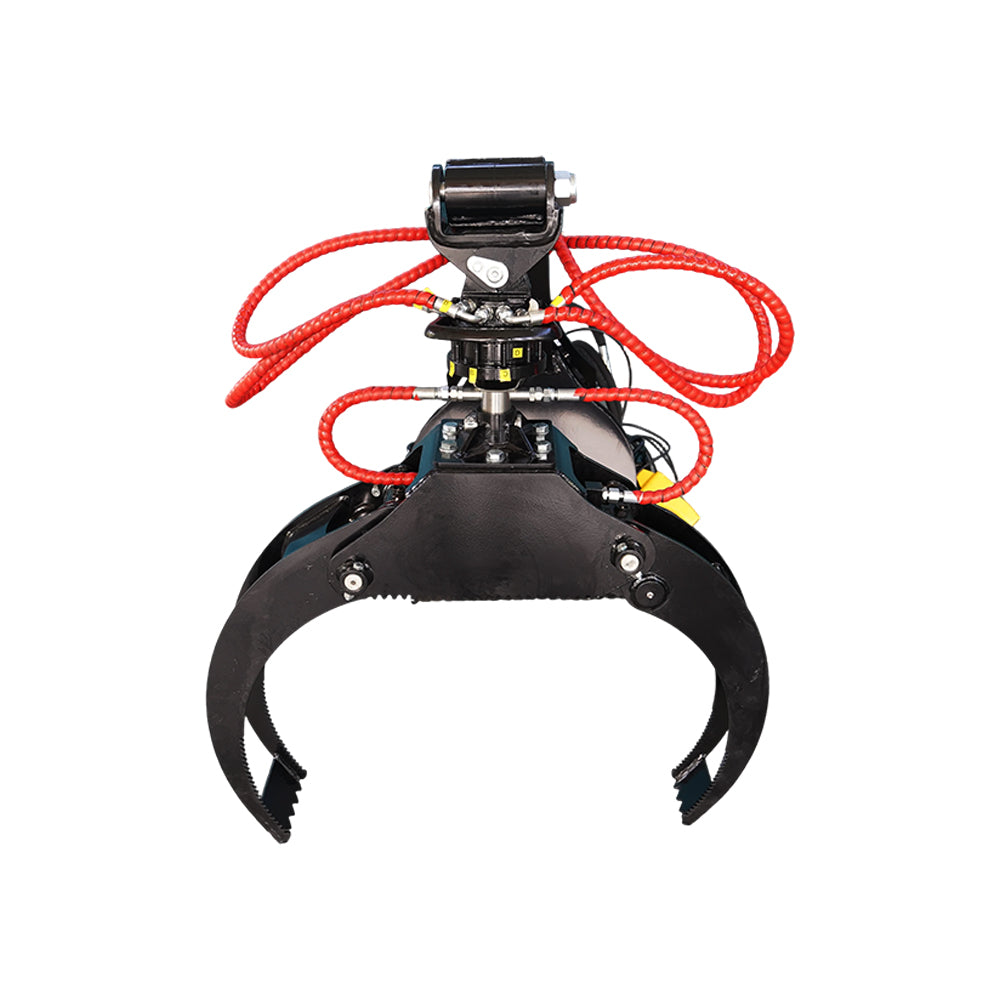

- Mini Skidsteer Log Grapple squeezes into tight spaces and gets the job done efficiently with the ideal attachment for landscapers and tree service contractors who need hauling strength through narrow passages.
- The Lod Grapple features a spring-centered return that twists when turning corners but stays straight when grabbing logs, a tight grapple closure for small branches, and lateral or in-line grapple positioning for smooth log handling.
- This Log Grapple is designed to fit the universal attachment plate of the following make of Mini Skidsteers: Toro, Vermeer, Ramrod, Boxer, Ditch Witch (Will not fit 1550 Ditch Witch)
- From Forest to Fireplace, it Provides Heavy Duty Equipment to Get the Job Done!

Details

Features:

- Grapple tines fold together as tight as 3 inches, ensuring easy handling of smaller logs and branches

- The grapple twists when turning corners but stays straight when grabbing logs.

- Includes lateral and in-line lock positions

- Leverage and secure your load with the serrated cradle when lifting logs in-line.

Specifications:

- Spring Return: 180 Deg Lockable
- Dimension: 47"x44"x40"
- Grapple Opening: 3"-40"
- Weight: 285 lbs
- Grapple Cylinder Clamp Force: 9400 lbs
- Recommended HP: 20-40 HP
- Boom Lift Capacity: 1000 lbs
- Rotator Rating: 6750 lbs
- Hydraulic Flow: 4-10 gpm
- Hydraulic Pressure: 3000 psi

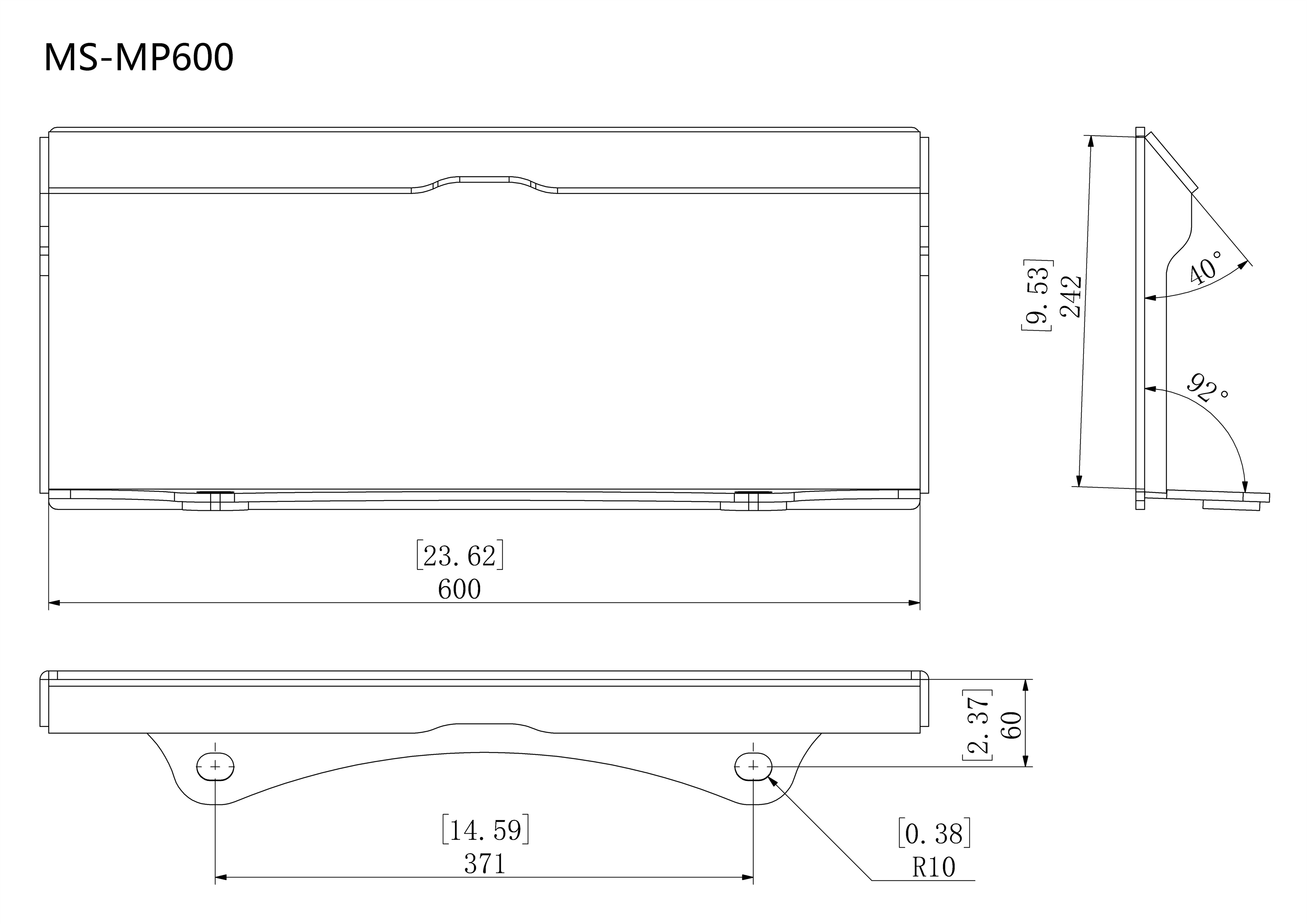

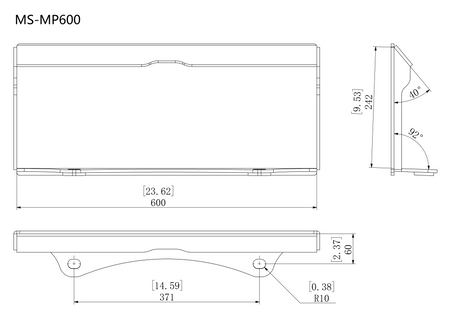

Technical Drawing:

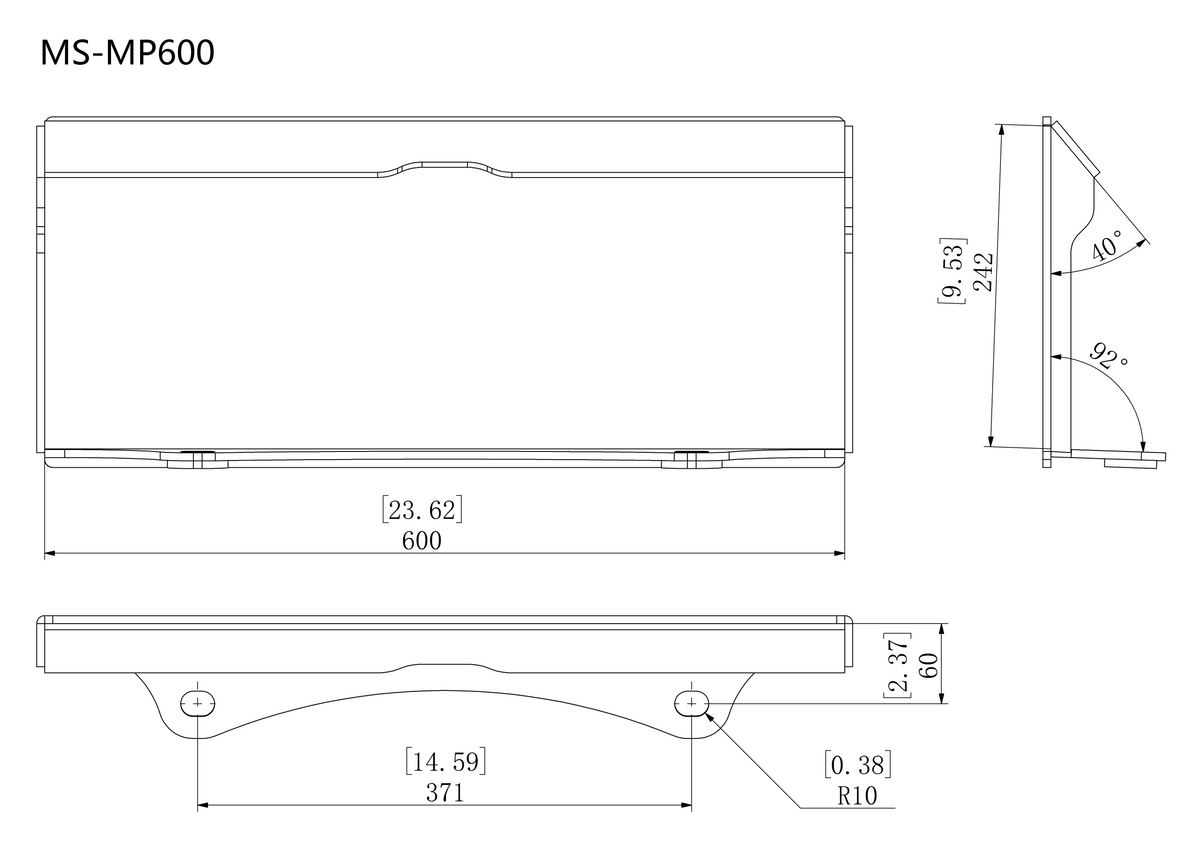

S-LG450(80-1020)-MP600:

Inner Width 23.6" Universal Skid Steer Quick Attach：

ATTENTION: Please check the Mount Plate can fit your loader before purchase!

Due to the buyer's failure to verify the size of the mount plate before purchasing, the product cannot match the loader and needs to be replaced. Our company does not accept returns unless the buyer compensates the seller for the round-trip shipping cost. For refunds, we will not refund product fees unless we receive the product in our warehouse and confirm that it can be resold.
