Product Overview

The type FJS2.5 jib allows for additional lifting height with the extension beam being raised above the fork pockets. The overall length when retracted is 51'', and when extended is 78''.

Details

Features:

- Double fork design
- Yellow painting plated finish
- 5500 lbs at first position to 1650 lbs fully extended
- Fits most pallet forks
- All price include shipping

Specifications:

- Safe Working Load: 5500lb
- Weight: 231lb
- Load Centre: 31in
- Fork Slots: 7.2x2.5in
- Pocket Centres: 10.8in
- Horizontal Centre of Gravity: 24.8in
- Vertical Centre of Gravity: 5.3in

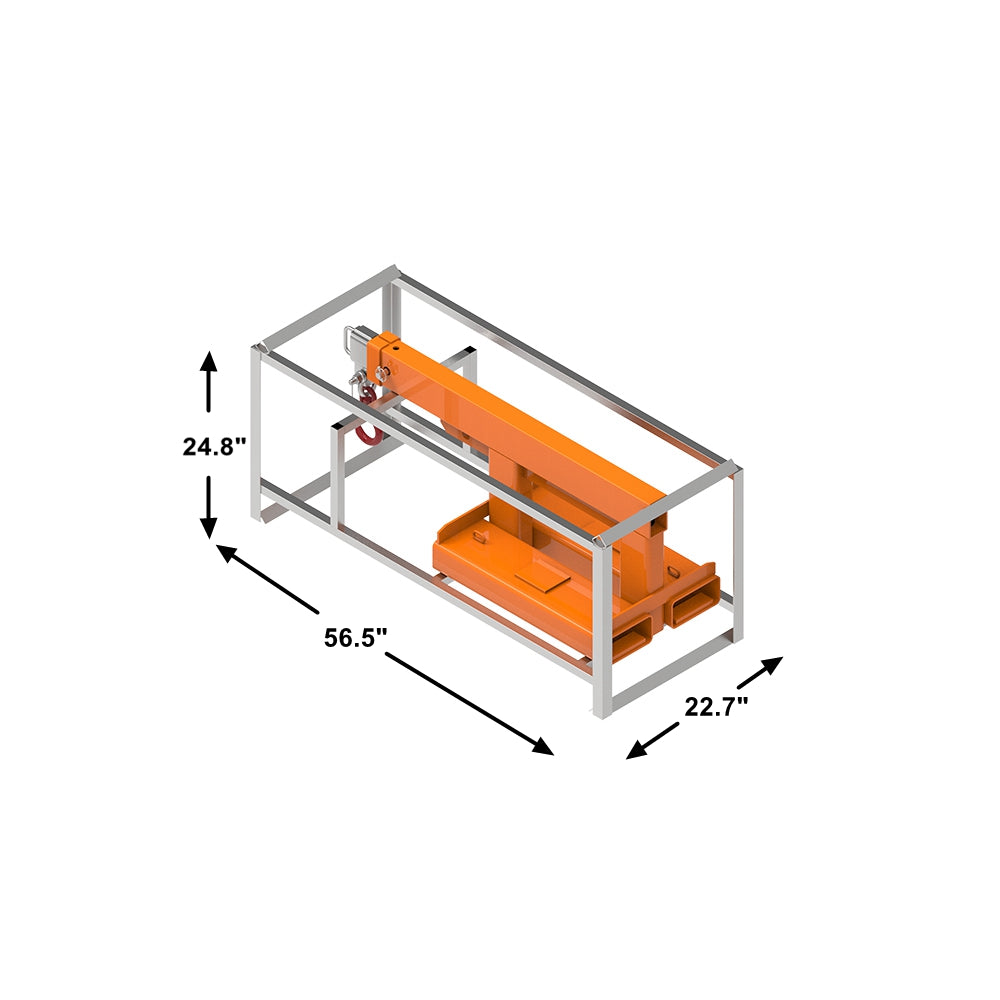

- Package Size (LxWxH): 53.2 x 22.8 x 23.8in
- Package Weight: 265lb

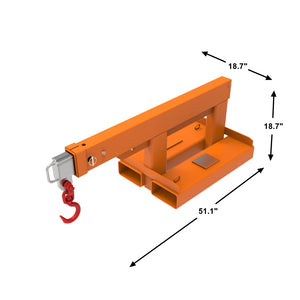

Technical Drawing:
